MDS Plot with Cluster Coloring

Performs classical multidimensional scaling (MDS) on a similarity or dissimilarity matrix and displays a 2D scatter plot colored by group labels, with optional confidence ellipses. This is the primary visualization for MOSAIC's per-feature sample similarity matrices and module-level subgroup structure.

Usage

plot_mds_cluster(
  similarity_matrix,
  title,
  cluster,
  size = 1,
  custom_colors = NULL,
  dis = FALSE,
  idx1 = 1,
  idx2 = 2,
  add_ellipse = TRUE,
  ellipse_level = 0.66
)

Arguments

similarity_matrix

A square numeric matrix of pairwise similarities or distances. By default, this is treated as a similarity matrix and converted to dissimilarity via 1 - x. Set dis = TRUE if the input is already a dissimilarity/distance matrix.

title

Character string for the plot title.

cluster

Vector of group labels (character, factor, or numeric), one per row/column of similarity_matrix. Used for point coloring and ellipses.

size

Numeric. Point size. Default: 1.

custom_colors

Named character vector mapping group labels to colors. Names must match the levels of cluster. Example: c("Control" = "#56B4E9", "Disease" = "#E69F00"). If NULL (default), the Set2 palette from RColorBrewer is used.

dis

Logical. If TRUE, similarity_matrix is treated as a dissimilarity matrix directly (no 1 - x conversion). Default: FALSE.

idx1

Integer. MDS dimension to use for the x-axis. Default: 1.

idx2

Integer. MDS dimension to use for the y-axis. Default: 2.

add_ellipse

Logical. If TRUE (default), add t-distribution confidence ellipses around each group.

ellipse_level

Numeric between 0 and 1. Confidence level for the ellipses. Default: 0.66.

Value

A ggplot object.

See also

compute_module_similarity for generating similarity matrices for subgroup detection.

Examples

# Create a toy similarity matrix
set.seed(42)
sim <- matrix(runif(100, 0.5, 1), 10, 10)
sim <- (sim + t(sim)) / 2  # make symmetric
diag(sim) <- 1
rownames(sim) <- colnames(sim) <- paste0("S", 1:10)
groups <- rep(c("A", "B"), each = 5)

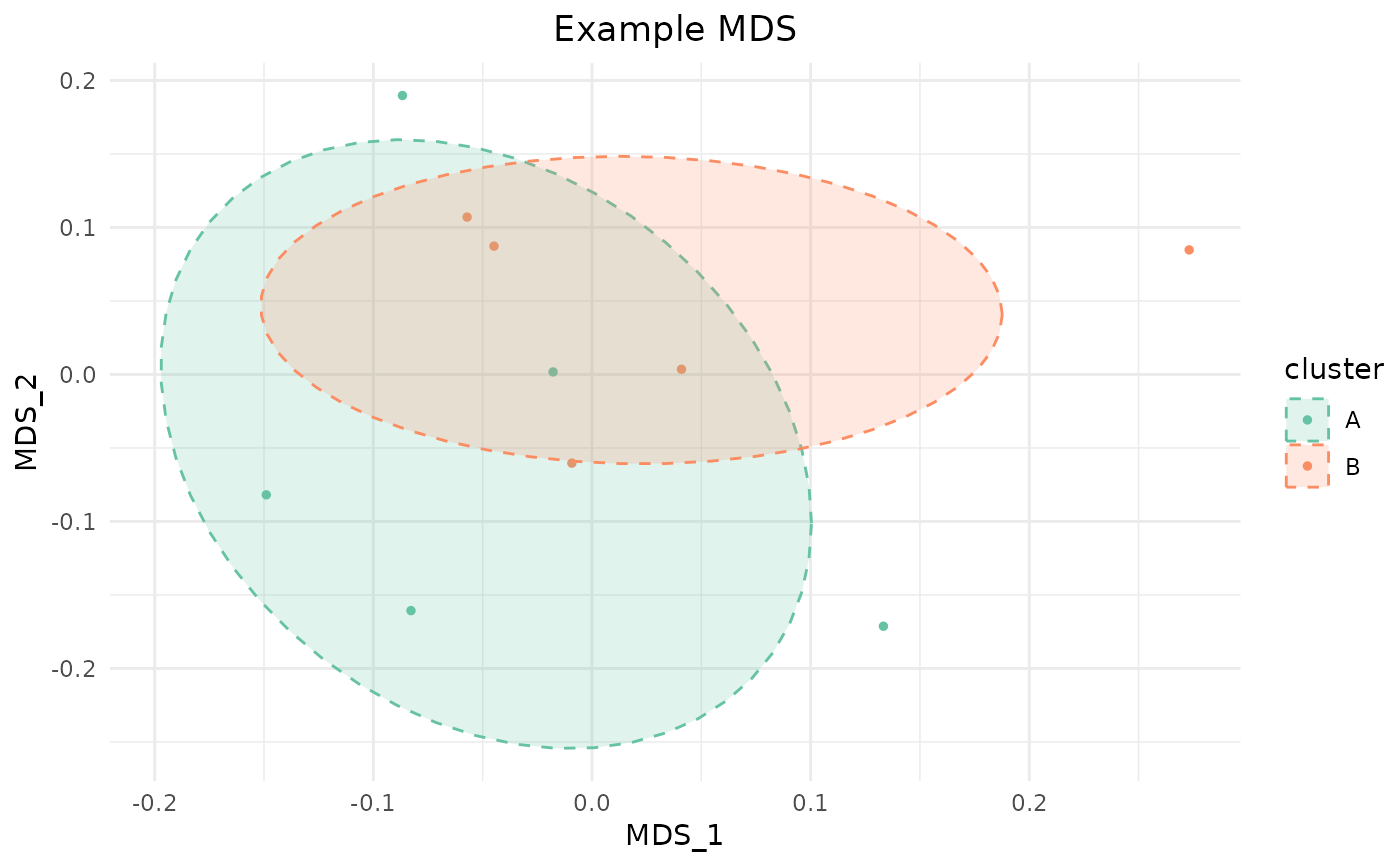

plot_mds_cluster(sim, "Example MDS", cluster = groups)
#> Warning: minimal value for n is 3, returning requested palette with 3 different levels


# With custom colors and no ellipses

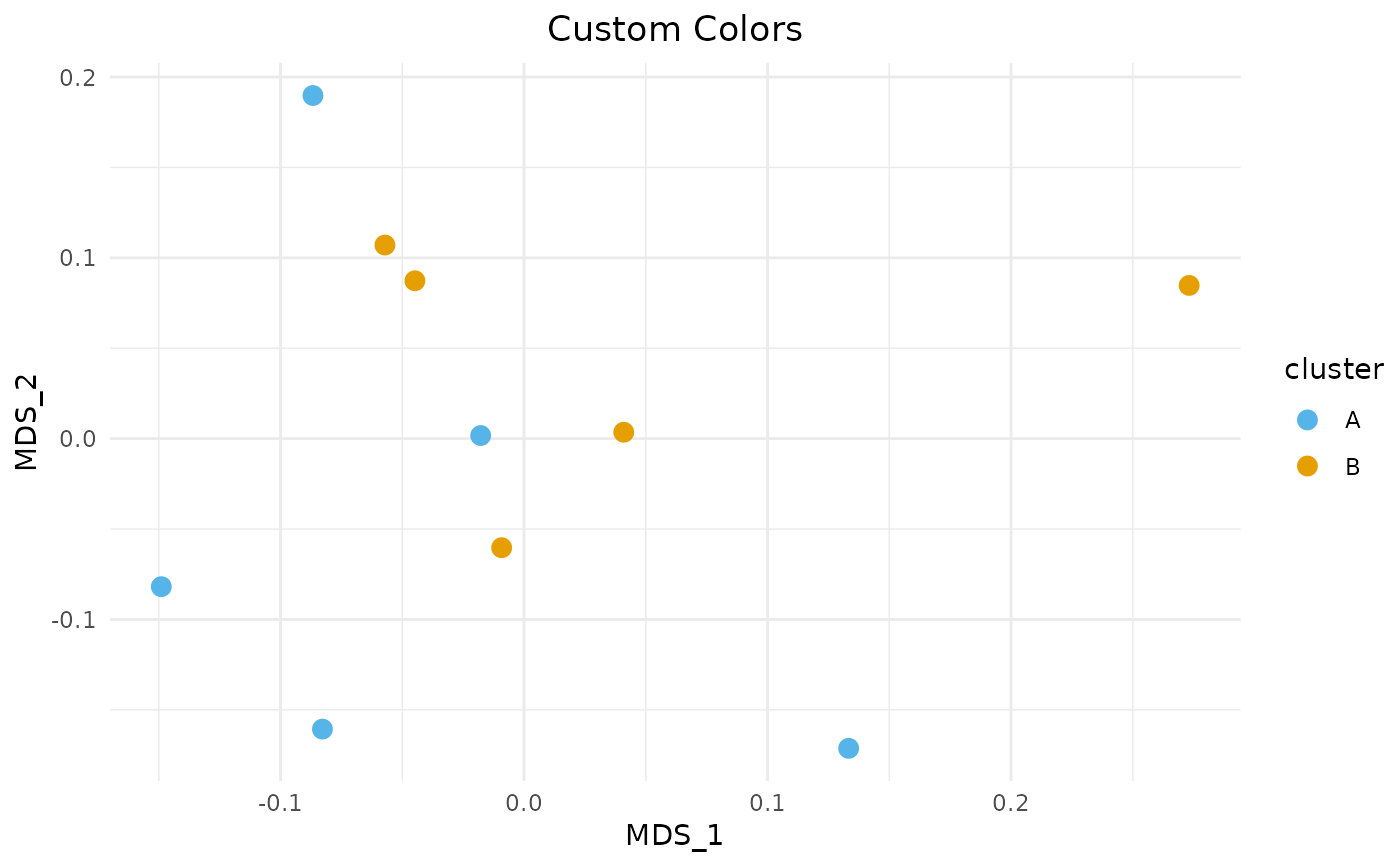

plot_mds_cluster(sim, "Custom Colors", cluster = groups,
                 custom_colors = c("A" = "#56B4E9", "B" = "#E69F00"),
                 add_ellipse = FALSE, size = 3)


if (FALSE) { # \dontrun{
# Visualize a DC feature's sample similarity
plot_mds_cluster(
  dc_result$similarity_matrix_list[[feature_idx]],
  title = "STAT5B Connectivity",
  cluster = paste0("Day_", dc_result$group_list[[feature_idx]]),
  custom_colors = c("Day_0" = "#56B4E9", "Day_7" = "#E69F00")
)
} # }
